ホーム /製品/電動ガラス炉/Architectures Furniture Automobile Home Appliance Luoyang LandGlass Gas Heating Solar Powered Tempered Glass Tempering Furnace

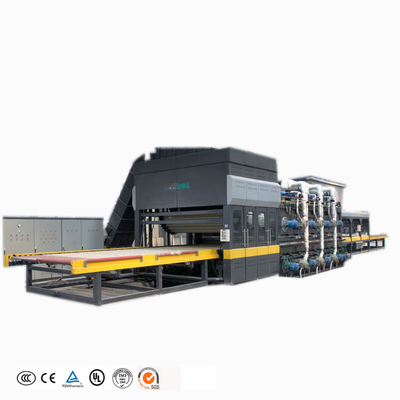

Architectures Furniture Automobile Home Appliance Luoyang LandGlass Gas Heating Solar Powered Tempered Glass Tempering Furnace

1.0 Sets
MOQ
Architectures Furniture Automobile Home Appliance Luoyang LandGlass Gas Heating Solar Powered Tempered Glass Tempering Furnace
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Manufacturing Plant, Construction works , Glass processing industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 27-31 loads/h
Voltage: 380v
Power: Depend
Dimension(L*W*H): According
Weight: kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 12mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Application: Architectures furniture Automobile Household Appliance Solar Energy
Tempering type: Gas tempering furnace
Max loading dimension: According to your Requirements
Heating method: Gas Heating
Productivity (loads/h): 13-16
Product name: LuoYang LandGlass gas heating toughened Glass tempering furnace
Installed capacity: 300KVA
Min loading dimension: 100mm*350mm
Glass thickness: 3-19mm
Color: Customized
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: United States, UAE
証明: CE 3C ISO
After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
基本情報
証明: CE 3C ISO
お支払配送条件
Packaging Details: LuoYang LandGlass gas heating toughened Glass tempering furnace Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.Glass tempering furnace will be packed separately and it will be assembled together
Supply Ability: 20 Set/Sets per Month Toughened Glass Plant
製品の説明
Product Description
LuoYang LandGlass gas heating toughened Glass tempering furnace
1. The glass sheets are heated by burning gas, lowering dramatically the installed electrical power.
2. The furnace combines the efficient combustion technology and JetConvection Heating Technology. LandGlass proprietary burners guarantee a high speed, efficient combustion. The mature JetConvection Heating Technology ensures even and fast heating.
3. A clean heating environment inside the furnace is guaranteed by isolating the combustion system.
4. Interlock and ignition safety control systems are applied to ensure the complete safety of the system.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Model
A2442J+
A2450J+
A2480J+
Max.size
2440x4200
2440x5000
2440x8000
Min.size
150x350
150x350
150x350
Thickness range
4-19
4-19
4-19
Productivity(5mm)
18-20(clear glass)
15-18(low-e glass)
18-20(clear glass)
15-18(low-e glass)
18-20(clear glass)
15-18(low-e glass)
Installed Capacity
1000kVA
1000kVA
1600kVA
Detailed Images
The Gas Heating Glass Tempering Furnace is a new type of tempering furnace that heats the glass sheets by burning CNG or LPG. LandGlass designed and developed high efficiency burners to allow the gas to combust fully to create the heat that is then transferred to the glass surface. After the heating process, the hot glass sheets are tempered and cooled down.
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
GlassTech 2018
China Glass 2019
China Glass 2019
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
