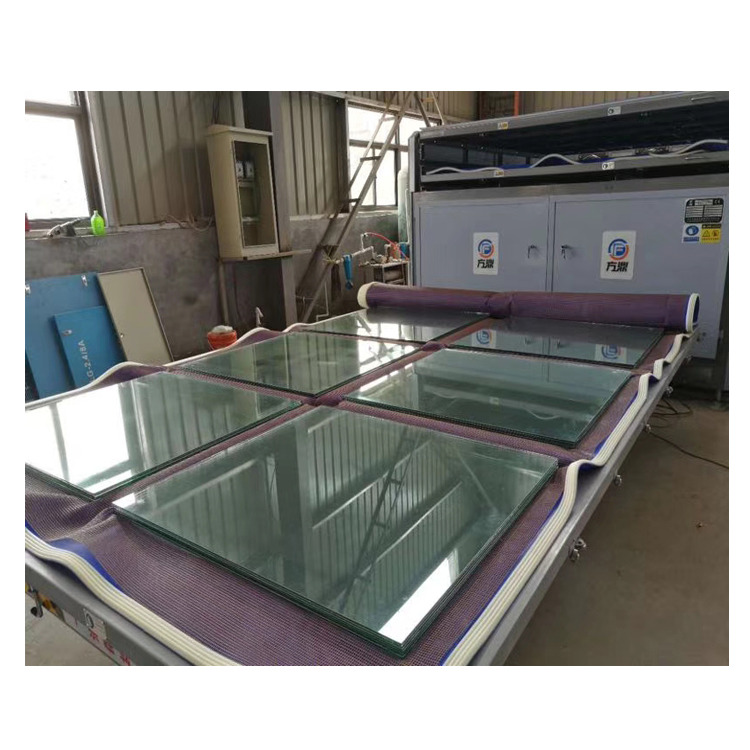

Architectures Furniture Home Appliance Glass Sandwich Lamination Forming Furnace

1 set
MOQ
Architectures Furniture Home Appliance Glass Sandwich Lamination Forming Furnace
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Hotels, Machinery Repair Shops, Home Use, Construction works , Advertising Company
Showroom Location: Egypt, India
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: 99%
Voltage: 220V/380/440V
Power: 36KW
Dimension(L*W*H): 2530*4000*2120mm
Weight: 3500 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Glass Thickness: 3-18mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, PLC, Pump
Name: Sandwich Glass Forming Lamination Furnace
Product name: EVA Glass Laminating Machine
Usage: Laninating Glass
Application: Architectures Furniture Household Appliance
Function: Types Laminated Glass
Control system: PLC
PLC: Siemens Brand
Operation: Automatic Control
Max.Glass Size: 2000*3000mm
Heating method: Forced Convection
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, India
証明: ce
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
基本情報
証明: ce
お支払配送条件
Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading
Supply Ability: 30 Set/Sets per Month
製品の説明
Product Overview

3-Layer glass lamination machine

1. Equipment adopts self-developed high-performance vacuum pump,has strong stability and negative pressure capability, which can greatly increase the glass yield.
2. The temperature control adopts multi-stage temperature control design, which is accurate and stable, and is very suitable for products with strict temperature requirements, such as smart glass.
3. The complete set of Siemens electrical appliances in the control cabinet basically eliminates the possibility of electrical
failure.
4. The equipment body made of high-strength steel, which will not be deformed and twisted under high temperature , stable and reliable operation.
5. Multi-point temperature measurement, multi-point heating, modular heating design, internal temperature difference is
strictly controlled within 3 degrees, which greatly improves the yield and transparency of glass.
6. High temperature resistant and high tear resistant silicone bag, effective service life 3000-5000 times.
7.The automatic lifting platform adopts hydraulic transmission, with low noise, high bearing capacity and one-button positioning, which is safe and stable.
8. Equipped with high speed cooling fans. Fast cooling, high transparency, saving time and labor.
* 99% pass rate
* 50% energy saving
* High efficiency
* PLC control, Simple to operate
* High quality spare parts
* EVA/TPU/SGP film as interlayer
* Rich range of products
* Large size bending glass processing
* No waste when suddenly power off
* Free home installation and training

Right elevation
Left elevation
Front elevation
Specification
item
value
Model
FD-J-2-3
Machine Type
Glass Laminating Machine
Max. Glass size
2000*3000mm*3-layer
Production Capacity
54 sqm/cycle
Place of Origin
Shandong, China
Voltage
220/380/440V, can be customized
Power
36KW
Dimension(L*W*H)
2530*4000*2120mm
Weight
3500kg
Certification
CE, CSA,UL
Warranty
1 Year
After-sale service
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
Glass Thickness
3-19mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product
Warranty of core components
1 Year
Core Components
Motor, PLC, Pump
Product name
EVA Glass Laminating Machine
Operating temperature
90-140℃
Control system
PLC
PLC
Siemens Brand
Heating method
Forced Convection
Operation
Automatic Control
Processable glass type
Float/curved/tempered/Glass
Company & Exhibition
Fangding Technology Co., Ltd
It is a high-tech enterprise which was founded in October 2003, located in Rizhao city, Shandong, covering an area of more than 20,000 square meters, specializing in developing, manufacturing and selling the laminated glass equipment and the interlayer films, the main products are EVA laminated glass machine, Heat Soak Furnace, Smart PVB glass laminating line and EVA,TPU,SGP films.

On-site processing of laminated glass at the exhibition

The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions.
During the exhibition, through the on-site processing of the laminated glass, Fangding presented its unique design style and manufacturing process to the customers!
PRODUCT CONFIGURATION
FANGDING brand long life vacuum pump
Automatic rapid cooling system
Intelligent Siemens PLC control cabinet
Elevator type one-key lifting system
All wires are externally connected, easy to install and maintain
304 stainless steel heating pipes are evenly distributed
Packing & Delivery
Wrapped with moisture proof film Wooden case suitable for container loading
Successful Project
German exhibition site processing
Two sets machines in USA
Installation and training in Australia
Installation and commissioning in Ukraine
Samples finished in China
Two machines in Mexico
Application
Laminated glass applications
Outdoor architecture glass and indoor decorative glass, including glass wall, ordinary float laminated glass, curved laminated glass, tempered laminated glass, high-level office building, furniture, church, villa, wall windowpane, tabletop, craft glass, colored laminated glass, LED glass, smart glass, bullet-proof glass, multi-layer laminated glass, laminated silk glass, household appliances panel glass, glass corner, background wall and video wall glass, coffee table surface glass, partition screen, frameless painting laminated glass and personalized portrait glass etc.
SIMILAR PRODUCTS
FAQ
Q: Could your machines laminate bent tempered glass?
A: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.
Q: How many stages your machines can set?
A: Normally we set 3 stages. It can be customized for you to 5 stages if needed.
Q: When will your machine ready for delivery after our prepayment?
A: Normally within in 30 days after receiving prepayment.
Q: What about the terms of payment?
A: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Does your machine have any certifications?
A: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate. TUV certificate of Germany, PC certificate for Saudi Arabia, CSA certificate of Canada and so on.
Q: Could the laminated glass used for exterior?
A: Yes. The laminated glass with super clear EVA can be totally used for exterior.
Q: How to operate the machine? Is it difficult?
A: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
