Building Material Shops Fast Speed ​​Glass Washing Machine Customer Manufacture Automatic Glass Washing Machine

1.0 set
MOQ
Building Material Shops Fast Speed ​​Glass Washing Machine Customer Manufacture Automatic Glass Washing Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location: Egypt, Canada, Italy, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikis
Condition: New
Machine Type: Glass Cutting Machine
Production Capacity: high productivity
Voltage: 380V
Power: 12KW
Dimension(L*W*H): 3500*1750*1100 mm
Weight: 1250 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Glass Thickness: 3-19 mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Hot Product 2021
Warranty of core components: 1 Year
Core Components: Motor, Gear, PLC, Pump, Gearbox
Product name: Horizontal glass washing machine
Washing speed: 1-5 m/min
Color: Bule
Min glass size: 120*120 mm
After Warranty Service: Video technical support
証明: ce
After-sales Service Provided: Video technical support
基本情報
証明: ce
お支払配送条件
Packaging Details: Sea worthy packaging for Fully Automatic Vertical CNC Insulating Glass Production Line / Double Glazing Glass Machine Gas Filling
Supply Ability: 20 Set/Sets per Month Automatic insulating Glass Production Line
製品の説明
Product Description
Model
Max glass size
Glass thickness
Work height
Total power
WH-1200
1200*2000
3-19 mm
about 910mm
     12 KW
Product Feature:

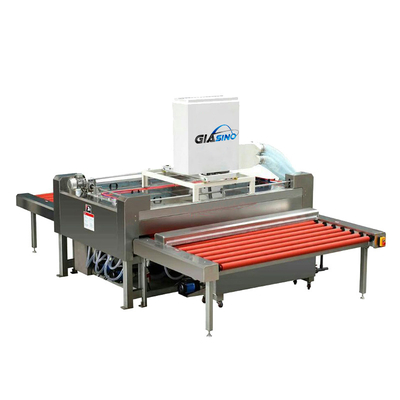

1. WT serial horizontal glass washing and drying machine is used for washing and drying flat glass.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. Main drive is chain drive and step less speed regulation.
4. The machine is designed with two-steep washing, and equipped with two tanks and high pressure pump.
5. The machine structure is aluminum alloy assembled structure, never scrap, with permanent service life, and can save 70% energy.
6. Washing section and panels contact with water are stainless steel. 7. Metal panels of other parts are painted with top-grade machine paint or powder. 8. All transmitting rubber rollers of the machine are velcanized rubber with SS 304 shaft(They are forbidden to contact with acidic liquids.) 9. Washing section and drying section can be risen up max.to 350 mm as a whole, which is convenient to wash and maintain. 10. The machine has three pairs of brushes (φ160 mm) with SS 304 shaft.( Washing LOW-E glass function is optional: can wash LOW-E glass, ordinary coated and solar coated glass without any scratch on surface). 11. The machine has two pairs of air knife which has large wind and good drying effect. The machine has air heating system. 12. Blower has air filter in air inlet, big airflow and excellent drying effectively. The whole blower is installed on the top of machine to  save space and it  can be risen up with washing and drying section together,  and the air filter is on the side for convenient inspection and cleaning.
Technical parameters
Parameter
WH-1600-2
WH-1200-2
WH-800-2
WH-500
Washing speed
1-5 m/min
1-5 m/min
1-5 m/min
1-5 m/min
Max.size(mm)
1600*2500
1200*2000
800*1200
500*1000
Min.size(mm)
120*120
120*120
80*80
35*35
Power supply
15 KW
12 KW
8 KW
6 KW
Dimensions(mm)
4200*2300*1200
3500*1750*1100
1800*1200*1050
1800*900*1000
Weight
1800 Kg
1250 Kg
800 Kg
500 Kg
Machine Detail Picture Reference
1. The main part consists of loading, cleaning, drying, and output parts.
2. Conveyor adopts chain transmission.
3. The machine has two stainless steel water tanks.
4. There are four groups of brushes and three groups of absorbent cotton within the machine.
5. Reliable, good cleaning effect, easy to adjust.
6. Conveying glass Frequency Control, which is easy to control, more conducive to connect the bilateral edging production lines, glaze line, insulating glass production line, safety glass production lines.
7. Special cleaning requirements or attached features can be customized.
Packing & Delivery
The factory will arrange production quickly after receiving the order and sea worthy packaging for Automatic Glass cutting machine.
Company Profile
Jinan Glasino Machinery Co.,Ltd founded in 2003, is the high-tech enterprises specializing in the production of Glass tempering furnace CNC glass cutting machine, insulating glass machine, curtain wall glass machine, market share ranks first in the same line. Main products are: Laminated glass cutting machine, Automatic glass Cutting line, Multifunctional glass cutting machine, Insulating glass production line, Automatic insulating glass CNC sealing machine, Aluminum spacer bending machine, Desiccant filling machine etc, full set processing machines for insulating glass. We have passed European CE certificate, Switzerland SGS certificate ,ISO 9001: 2008 quality control system, win good reputation from domestic and international customers. Outstanding quality is the basis of brand. Satisfying service is the guarantee or brand. Perpetual innovation is the soul of brand. Glasino people will continue making efforts and persist in taking the quality as the life of the enterprise. Continuously improve the production management level, research and develop more advanced technology to meet the needs of the market. Glasino will work with you to create a brilliant future.
Exihibition
We participated in exhibitions all over the world and established good relationships with customers.
FAQ
1. Who are you?
We are based in Shandong, China, start from 2019,sell to South America(20.00%),Eastern Europe(15.00%),Mid East(15.00%),Western Europe(15.00%),North America(10.00%),Southeast Asia(10.00%),Africa(10.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We have a one-year warranty.

3.What can I buy from you?
Glass Cutting Machine,Insulating Glass Machine,Glass Tempering Furnace,Glass Washing Machine,Glass Ceramic Products Kiln

4. Why should I buy from you not from other suppliers?
1 More than 20 years of design and production experience 2 Master core technology 3 Professional after sales service team 4 Products are exported to many countries and regions 5 Excellent and stable product quality

5. What services can you provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
